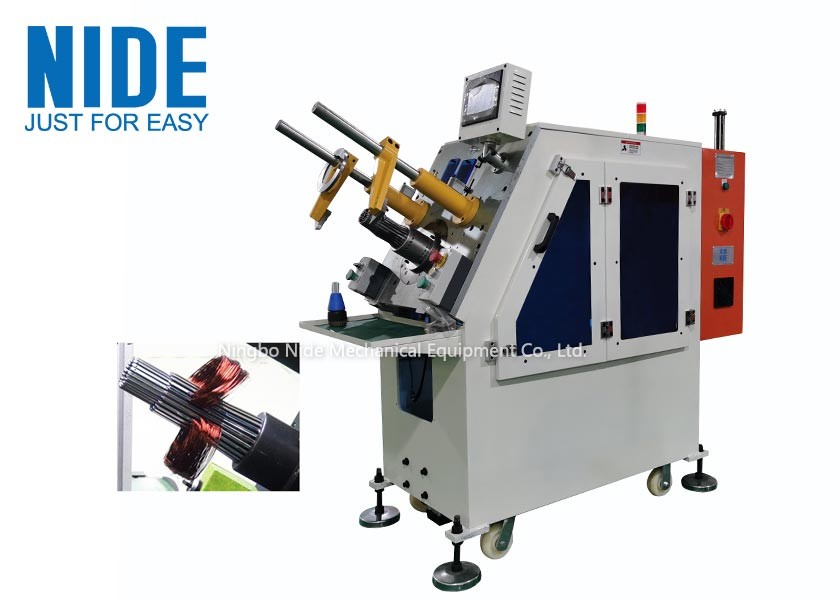

Semi Auto Manual Stator Winding Inserting Machine 8 - 48 Slots For Electirc Motor

Name: Semi Auto Manual Stator Winding Inserting Machine 8 48 Slots For Electirc Motor
Brand: NIDE
Price: 1 USD

Quality Semi Auto Manual Stator Winding Inserting Machine 8 - 48 Slots For Electirc Motor for sale

Brand Name : NIDE

Model Number : QX1-150-160N

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Supply Ability : 120 sets per year

Delivery Time : 45 working days

Packaging Details : Wooden case which is suitable for sea transport

Payment Terms : L/C, T/T

Name : stator coil insertion

Used for : insetting coil into stator slot

Type : semi-automatic

Max stator stack height : 150mm

Stator slot : 8-48 slots

Condition : new

Color : white or customized

Weight : 600KG

Contact Now

QX1-150-160N self -auto manul stator coil winding inserting equipment machine

(1) Machine main function and characteristic
With servo driven system,the stator coil winding inserting machine is used for inserting coil and wedge into the stator slot simultaneously,the wedge feeding is to be done by stepping motor,different parameter could be set in human-machine interface.
The speed and feeding mode is acquirable according to different slot filling rate and different kind or wire.

(2)Application
The stator winding inserting machine mainly apply to air conditioner motor,washing machine motor,compression motor,fan motor,generator motor,pump motor,single and three phase induction motor,etc.

(3)Technical paramenter

Production name:	stator coil winding inserting machine
Stator stack height:	10-150mm
Stator ID:	30-110mm
Stator OD:	0-160mm
Tooling stroke:	≤65mm
Wire type:	AL/Copper
Slot NO.:	8-48 slots
Power supply:	380V 50/60HZ 3KW
Weight:	about 600KG
Dimension:	(L)2400(W)1900(H)2250mm

(4)The stator winding inserting machine working process
